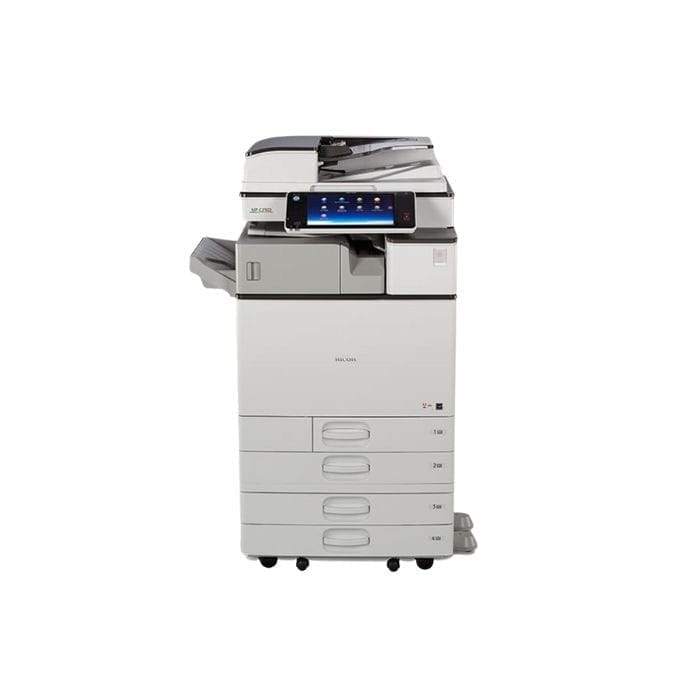

Ricoh Aficio MP C2503

Description The Ricoh Aficio MP-C2503 can color print, copy, scan and fax documents up to 12″ x 18″. This device can also scan and print duplex including identification cards. The Ricoh 2503 will take only 19 seconds to warm up, will print at 25 pages per minute and its paper capacity is 2300 sheets. It has a low electricity consumption and includes programmed shut down to save electricity. General Specifications Printing Process 4-Drum Method Output Speed (Copy/Print) 25-ppm BW & FC (LTR) Warm-Up Time 19 seconds Recovery from Sleep Mode 5.6 seconds First Copy Out Time (FC/BW) 7.5/5.3 seconds Copy Resolution 600 dpi Quantity Indicator Up to 999 copies Automatic Reversing Document Feeder (ARDF) Original Capacity: 100 sheets Original Size: 5.5″ x 8.5″ – 11″ x 17″ (A5 – A3) Paper Weight: Simplex: 11 – 34 lb. Bond (40 – 128 g/m²) Duplex: 14 – 34 lb. Bond (52 – 128 g/m²) Paper Capacity Standard: 2 x 550 sheets 100-sheet Bypass Tray Maximum: 2,300 sheets (w/ opt. 2 Tray x 550-sheet Paper Feed Unit) Supported Paper Sizes 1st Paper Tray: 8.5″ x 11″ (A4) 2nd Paper Tray: 4.1″ x 5.8″ – 12″ x 18″, Envelopes (A3)Bypass: Up to 12″ x 18″, Envelopes (A3) Custom Sizes: Width: 3.5″ – 12.6″ (90 – 320 mm), Length: 5.8″ – 23.6″ (148 – 600 mm) Supported Paper Weights Standard Trays: 16 – 80 lb. Bond/ 166 lb. Index (60 – 300 g/m²) Bypass Tray: 14 – 80 lb. Bond/ 166 lb. Index (52 – 300 g/m²) Duplex Unit: 16 – 43 lb. Bond/ 90 lb. Index (52 – 169 g/m²) Paper Types Plain/recycled paper, Letterhead, Preprinted Paper, Card Stock, Coated Paper, Envelopes (tray 2 bypass) Auto Duplex Standard Output Capacity Standard (all): 500 sheets, Face Down Maximum: 625 sheets (w/500-sheet Finisher 1 Bin Tray) Zoom 25% – 400% in 1% increments Dimensions (W x D x H) 23.1” x 27” x 35.9” (587 x 685 x 913 mm) Weight 179 lbs. (81 kg) w/ARDF Power Requirements 120V – 127V, 60Hz, 12A Power Consumption 1,580W or less TEC Value .91 kWh   Printer Specifications CPU PMC-Sierra RM7035 @ 600 MHz, Embedded Memory 1.5 GB RAM Standard/ 2.0 GB RAM Maximum Hard Disk Drive 250 GB HDD Max Print Speed 25-ppm BW & FC Print Drivers Standard: PCL 5c, PCL 6 (XL), XPS via download Optional: True Adobe® Postscript3 Font Support Standard: PCL: 45 Scalable fonts 13 International fonts Optional: PostScript3: 136 Roman fonts Max Print Resolution 1200 x 1200 dpi Network Interface Standard: Gigabit Ethernet (1000BaseT/100Base-TX/10Base-T); USB 2.0 Type A, USB 2.0 Type B port, Front USB 2.0/SD Card Slot Interface Optional: IEEE 802.11a/b/g/n Wireless LAN Type M2, IEEE 1284/ECP Parallel Interface Type A Network Protocols TCP/IP (IPv4, IPv6), IPX/SPX* Network/OS Windows XP/Vista/7/8/Server 2003/2003R, Server 2008/Server 2008R2,Server 2012; Mac OS X 10.5 or later, Novell NetWare 6.5*,NDPS Gateway; Sun Solaris, HP-UX, SCO OpenServer, RedHat Linux, and IBM AIX 5L, SAP R/3, IBM iSeries – AS/400 using OS/400 Host Print Transform Utilities Web SmartDeviceMonitor Web Image Monitor, Device Manager NX, @Remote™ * Netware Option is required. Document Server Specifications Max. Stored Documents 3,000 documents Max. Page Capacity 9,000 pages   Scanner Specifications (Standard) Scanner Resolution BW and FC scanning at 100 – 600 dpi, Up to 1200 dpi for TWAIN scanning Default Scan Resolution: 200 dpi Scanning Speed 200 dpi: 54 ipm (Letter-size) BW/FC Scan Area 11.7″ x 17″ (297 mm – 432 mm) Compression Method BW: MH, MR, MMR, JBIG2 (PDF Only) Grayscale/FC Color: JPEG Supported File Formats Single/Multi-Page TIFF, Single Page JPEG, Single/Multi-Page PDF, Single/Multi-Page High Compression PDF, Single/Multi-Page PDF/A Scan Modes Scan-to-Email (with LDAP support) Scan-to-Folder (SMB/FTP/NCP*) Scan-to-URL Scan-to-Media (USB/SD Card) Network TWAIN Scanning *Netware option is required   Fax Specifications Type Fax Option Type M3; Super G3 Memory Capacity (SAF) Standard: 4 MB (approx. 320 pages), Optional: 28 MB (approx. 2,240 pages) with optional SAF memory Resolution Standard: 200 x 100 dpi, Detail: 200 x 200 dpi, Super Fine: 200 x 400 dpi/400 x 400 dpi (with optional SAF memory) Options Fax Connection Unit Type M3, Fax SAF Memory, G3 Interface Unit type M3 Modem Speed 33.6K – 2,400 bps w/Auto Fallback Compression Method MH, MR, MMR, JBIG Transmission Speed G3: Approximately 2 seconds/page (JBIG) Auto Dialing 2,000 Quick/Speed Dial numbers; 100 Group Dial numbers   Security Features (Standard) DataOverwriteSecurity System (DOSS), HDD Encryption, User Codes, SNMP v3 Support, Encryption, Locked Print, User Authentication, 802.1.x Wired Authentication, WPA/WPA2 (Wi-Fi Protect Access Support), Digitally Signed PDF, and more
