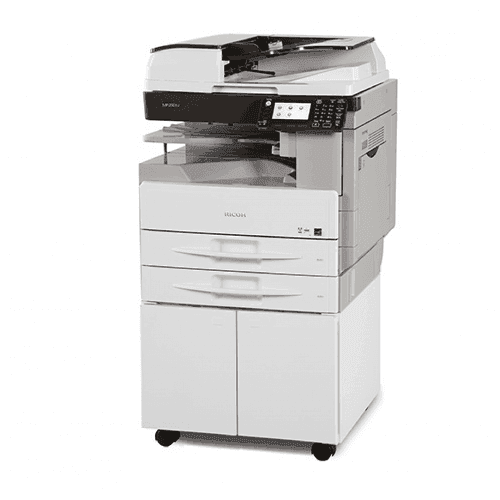

Ricoh Aficio MP 2001

Description Engine/General Specifications Configuration Console Scanning Element Laser beam scanning Printing Process Electrophotographic printing Control Panel 4.3″ color touch panel Color / Black & White Black & White Output Speed Copy/Print 20 ppm First Page Out Time 6 seconds or less Warm-Up Time Less than 20 seconds Recovery Time From Sleep Mode Less than 10 seconds Resolution 600 x 600 dpi System Memory 1 GB RAM (shared) Optional: 1.5 GB RAM maximum 250 GB HDD (shared) Maximum Copy Quantity Up to 999 Duplexing Automatic (Standard) Document Feeder Type Automatic Reversing Document Feeder (ARDF) Document Feeder Original Size 5.5″ x 8.5″ – 11″ x 17″ (A5 – A3) Document Feeder Paper Weight 11 – 34 lb. Bond Simplex (40 – 128g/m2), 14 – 28 lb. Bond Duplex (53 – 105 g/m2) Document Feeder Capacity 100 sheets Preset Reduction and Enlargement Ratios 50%, 65%, 78%, 93%, 121%, 129%, 155% Zoom Range 25% to 400% in 1% increments Exposure Glass Size Up to 11″ x 17″ (A3) Original Type Sheets / Books Original Size 5.5″ x 8.5″ to 11″ x 17″ (A5 – A3) Maximum Original Size Up to 11″ x 17″ Supported Paper Sizes Standard Trays: 5.5″ x 8.5″ to 11″ x 17″ (A5 – A3) Bypass Tray: 5.5″ x 8.5″ to 11″ x 17″ (A6 – A3) Duplex Unit: 5.5″ x 8.5″ to 11″ x 17″ (A5 – A3) ARDF: 5.5″ x 8.5″ to 11″ x 17″ (A5 – A3) Supported Paper Weights Standard Trays: 16 – 28 lb. Bond (60 – 105 g/m2) Bypass Tray: 16 Bond – 90 lb. Index (60 – 162 g/m2) Duplex Unit: 17 – 24 lb. Bond (64 – 90 g/m2) ARDF: 11 – 34 lb. Bond Simplex (40 – 128g/m2), 14 – 28 lb. Bond Duplex (53 – 105 g/m2) Supported Paper Types Plain, Recycled, Colored, Letterhead, Preprinted, Bond, Card Stock, Prepunched, Special, Thick*, OHP (Transparency)* Envelopes*, Label Stock* Standard Paper Capacity 600 sheets (250 sheets x 2 Trays 100-Sheet Bypass Tray) Maximum Paper Capacity 1,600 Sheets Standard: 250 sheets x 2 Trays 100-Sheet Bypass Tray Optional: 500 sheets x 1 or 2 Trays Standard Output Capacity 250 sheets (internal tray) Maximum Output Capacity 350 sheets (with 100-sheet 1 Bin Tray Option) Maximum Monthly Volume 10000 Power Source 120V, 60Hz, 12A Typical Electricity Consumption (TEC) 0.355 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method. Dimensions W x D x H 23.1″ x 22.4″ x 26.9″ (587 mm x 568 mm x 683 mm) – includes ARDF Weight 114.0 lbs./51.7 kg Standard Features Auto Duplex, Auto Off Timer, Auto Paper Selection, Auto Start, Combine Copy, Electronic Sort, Image Rotation, Job Programs (25), Photo Mode, Series Copy, Simple Screen, User Codes (8 digits, 1,000 Personal Codes)   *Bypass Tray only **Typical electricity consumption by ENERGY STAR program Printer Specifications Processor Speed RM7035C – 533 MHz Hard Disk Drive 250 GB HDD Interfaces Ethernet 10Base-T/100Base-TX, Gigabit Ethernet (1000Base-T) Network Protocol TCP/IP (IPv4, IPv6), IPX/SPX2 Supported Operating Systems Windows XP/Server 2003/Vista/Server 2008/7; Novell Netware 6.5 and later; UNIX Filters for Sun Solaris 2.6/7/8/9/10; HP-UX 10.x/11.x/11iv2/11iv3; Red Hat Linux Enterprise V4, V5, V6; SCO OpenServer 5.0.6/5.0.7/6.0; IBM AIX Version 5.3, 6.1, 7.1; SAP R/3, 3.x or later, mySAP ERP2004 or later; Mac OSX 10.5 or later; Citrix Metaframe XP/ PresentationServer 4/4.5/XenApp 5.0, 6.0, 6.5 Device Management Utilities SmartDeviceMonitor for Admin and Client, Web SmartDeviceMonitor, Web Image Monitor Printer Languages Standard: PCL5e/6; Optional: Genuine Adobe® PostScript®3, Universal Driver Font Support Fonts for PCL 5e/6 45 Roman fonts and 13 International fonts Fonts for PS3 136 Roman fonts Print Resolution 600 x 600 dpi Mobile Printing Support Smart Device Connector app Printer Features Mobile Driver, Bonjour Support, Classification Code, PDF Direct Print, Windows Active Directory Support, DDNS Support, WS Printer, PCL Resident Font Adoption, Tray-Parameter Change from WebImageMonitor, XPS Support Other Print Features Media Direct Print (Print from USB/SD)¹, Mail to Print¹, Sample/Hold/Stored/Locked Print¹, Store and Print¹, Auto Job Promotion¹ Security Features Standard Features: SMTP over SSL; Authentication (Windows/LDAP/Kerberos/Basic/User Code/802.1.x Wired); Encryption (Address Book/Authentication Password/SSL Communication/IPsec; NetworkProtocol (Port) On/Off; IP Filtering; RAM Based Security when HDD is not installed Optional Features: Quota Setting/Account Limit1, DataOverwriteSecurity¹, Locked Print¹, HDD Encryption¹, Copy Data Security Unit, S/MIME1   ¹HDD option required ²Netware option required **Typical electricity consumption by ENERGY STAR program Some features may require additional options Specifications are subject to change without notice Scanner Specifications Scan Speed BW Full Color 50 ipm @ 300 dpi B&W (Letter/A4) 25 ipm @ 300 dpi Full-Color (Letter/A4) Scanning Resolution Up to 600 dpi Grayscale 256 levels Scan Area Main: 11″ (297 mm) Sub: 17″ (432 mm) Standard Interfaces Ethernet 10Base-T/100Base-TX, Gigabit Ethernet (1000Base-T) Optional Interfaces Wireless LAN (IEEE 802.11a/b/g) Protocols TCP/IP (IPv4, IPv6), IPX/SPX² File Formats Single/Multi Page TIFF, Single/Multi Page PDF, Single/Multi Page High Compression PDF and Single/Multi Page PDF/A; Single Page JPEG Scan Modes B&W: Text, Text/Line Art, Text/Photo, Photo, Grayscale Full-Color: Text/Photo, Glossy Photo, ACS Scan-to-USB/SD; Scan-to-Email (POP, SMTP, IMAP4); Scan-to-Folder (SMB/FTP/ NCP²); Scan-to-URL¹ Network TWAIN Scanning; WSD Scanner Scanning Features PDF Encryption, Drop Out Color Send, Scan-to-Email/SMB/FTP, LDAP Support, TWAIN Scanning Optional: Preview Before Transmission (TX Preview)¹, Scan to URL¹   ¹HDD option required²Netware option required Document Server Specifications Capacity Standard: 1 GB RAM (shared); Optional: 1.5 GB RAM maximum (shared), 250 GB HDD (shared) Maximum Stored Documents 3000 Fax Specifications Circuit PSTN, PBX Compatibility ITU-T (CCITT) G3 Fax Resolution 200 x 100 dpi, 200 x 200 dpi Compression Method MH, MR, MMR, JBIG Scanning Speed 2 seconds (Letter) Modem Speed 33.6K – 2,400 bps with Auto Fallback Transmission Speed Approx. 2 seconds/page (JBIG) Memory 4 MB (approx. 320 pages) Memory Backup 1 hour Max Auto Dials 1,000 (2,000 with HDD Option) Group Dials 100 groups (max. 500 numbers per group) User Function Key 3 keys Fax Features Detection of Misplaced Documents, Double Check Destination Address, Direct SMTP, Fax Forward to Email/Folder, LDAP Support, Internet Fax (T.37), IP Fax (T.38), LAN Fax Optional Features Paperless Fax¹, Remote Fax¹   ¹HDD option required Additional Features Paper Tray 1 Bin Tray BN2010 Paper Feed Paper Feed Unit PB2000 (Optional) Paper Size: 5.5″ x 8.5″ to 11″ x 17″ (A5 – A3) Paper Weight: 16 – 28 lb. Bond (60 – 105 g/m2)Paper Capacity 500 sheets x 1 Tray Dimensions (WxDxH): 21.8″ x 21.6″ x 5.4″ (553 x 548 x 137 mm) Weight: 26.5 lbs. (12 kg) Cabinet FAC59 Tall Cabinet (Required for installation with base model to bring the device up tothe optimal height) Dimensions (WxDxH): 29.7″ x 27.2″ x 16″ (755 x 692 x 406 mm) Weight: 26.0 lbs. (11.8 kg)
